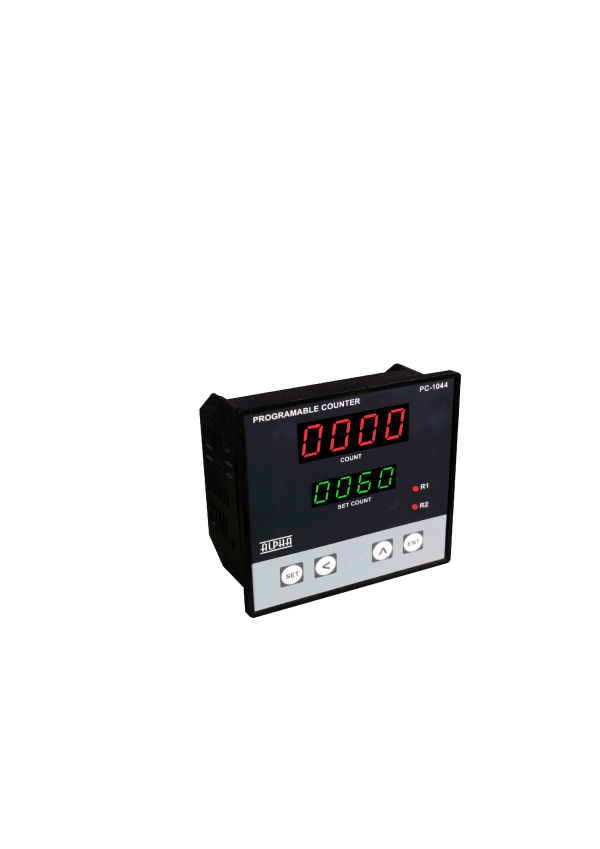

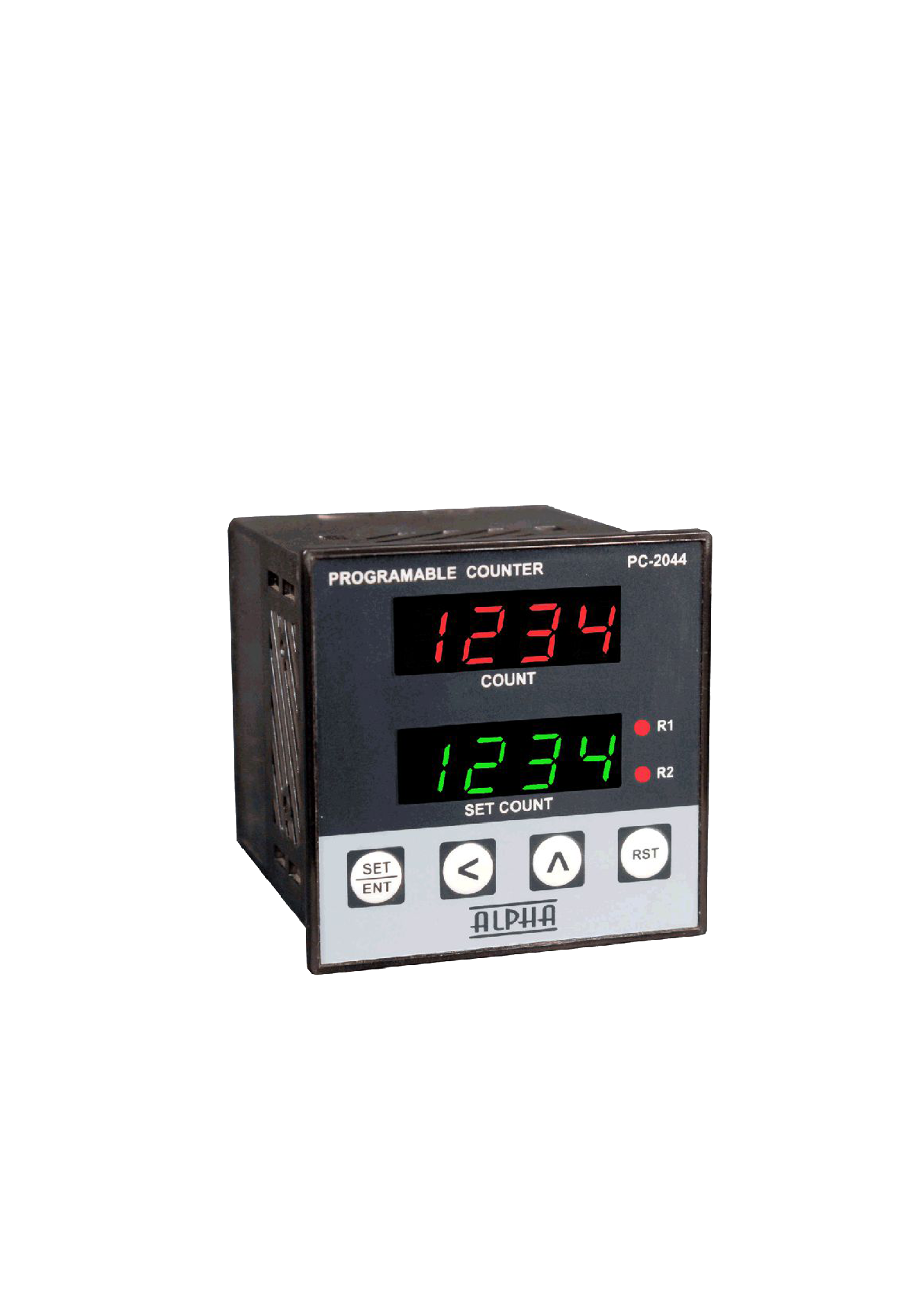

Model: PC-1044, PC-2044
Dimensions: 96×96, 50×72, 72×85 mm
Panel Cutout: 92×92, 68×68 mm
Display:
Upper: 6-Digit, 0.56” Red LED (Process Value)
Lower: 6-Digit, 0.4” Green LED (Set Value)
Input Signal: NPN/PNP Proximity Switch
Range: 0–999999
Output: 1 Relay, 5A, 230V AC & SSR Both Parallel
Set Point: 1 Set Point
Setting: Front Keypad Programming
Reset Facility: Auto/Manual Reset via Front & Back
Memory Retention: Non-Volatile Memory
Power Supply: 230V AC 50Hz
Indication: LED for Relay Status
Dimensions: 96×96, 50×72, 72×85 mm
Panel Cutout: 92×92, 68×68 mm
Display:
Upper: 6-Digit, 0.56” Red LED (Process Value)
Lower: 6-Digit, 0.4” Green LED (Set Value)
Input Signal: NPN/PNP Proximity Switch
Range: 0–999999
Output: 1 Relay, 5A, 230V AC & SSR Both Parallel
Set Point: 1 Set Point
Setting: Front Keypad Programming
Reset Facility: Auto/Manual Reset via Front & Back
Memory Retention: Non-Volatile Memory
Power Supply: 230V AC 50Hz
Indication: LED for Relay Status
