Model: DT 1 T000, DTT 2000, DTT 3000, DTT 56

Dimensions: 96×96, 50×72, 72×85, 48×96, 43×98, 43×92, 75 mm

Panel Cutout (mm): 92×92, 68×68, 45×91 mm

Display:

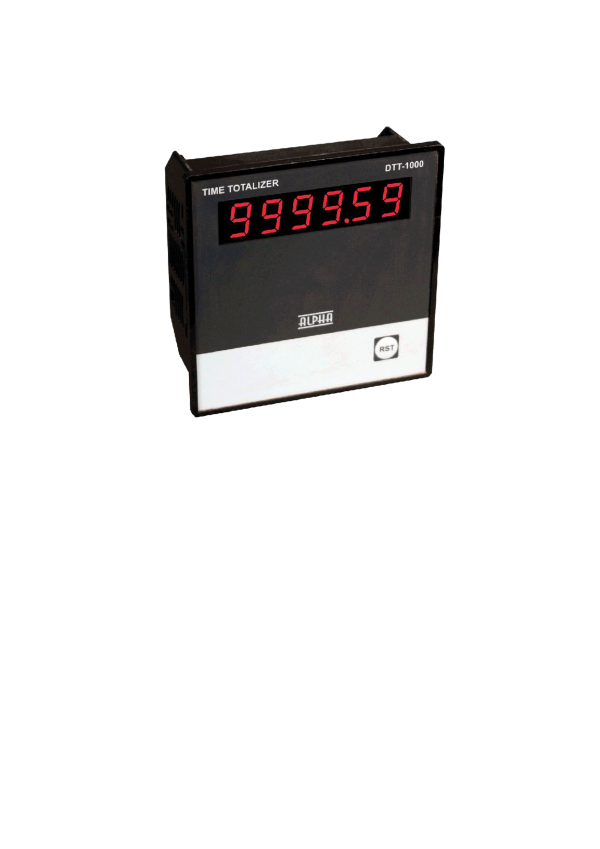

DTT 1000: 6 Digit, 0.56” Red LED

DTT 2000: 6 Digit, 0.4” Red LED

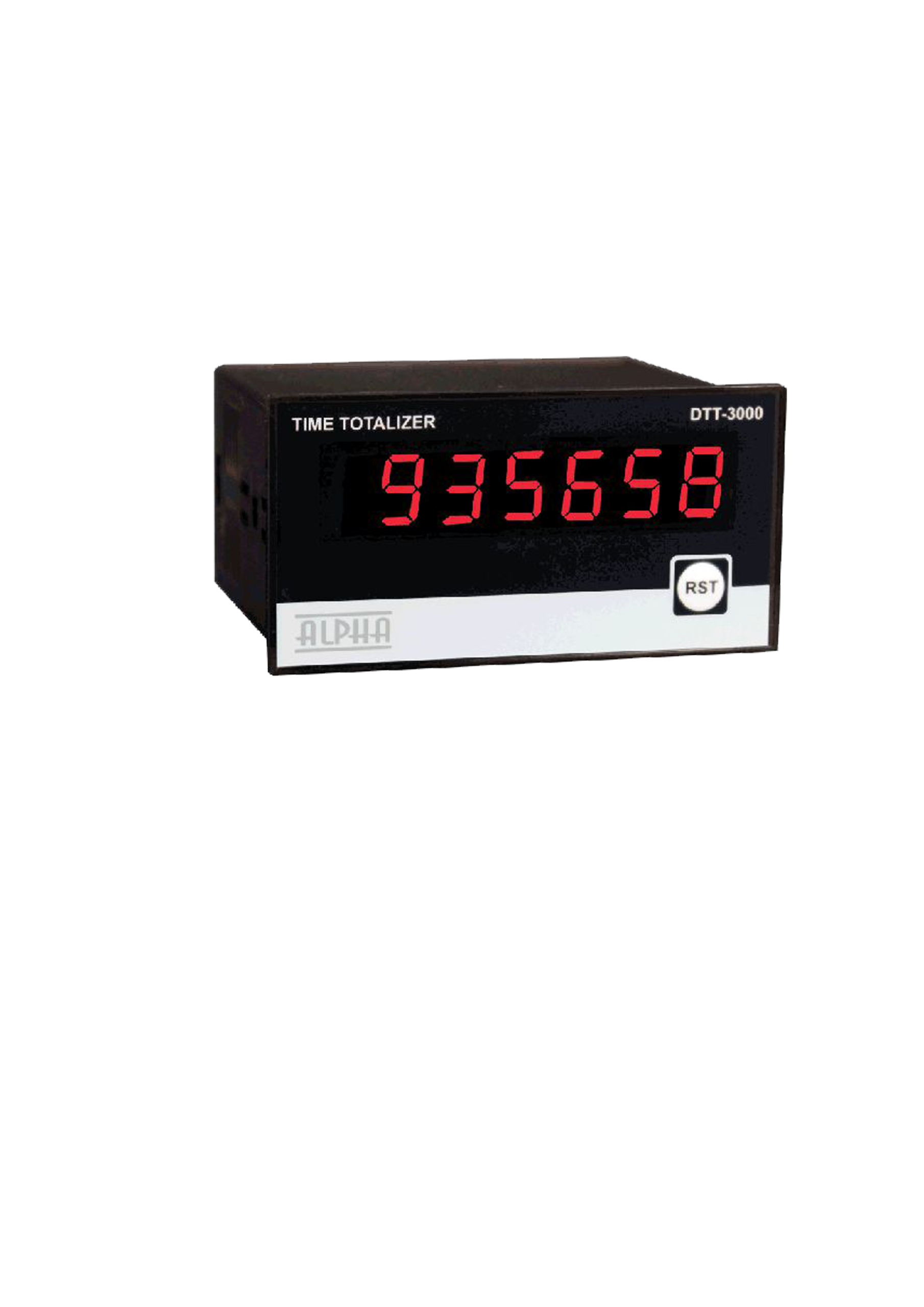

DTT 3000: 6 Digit, 0.56” Red LED

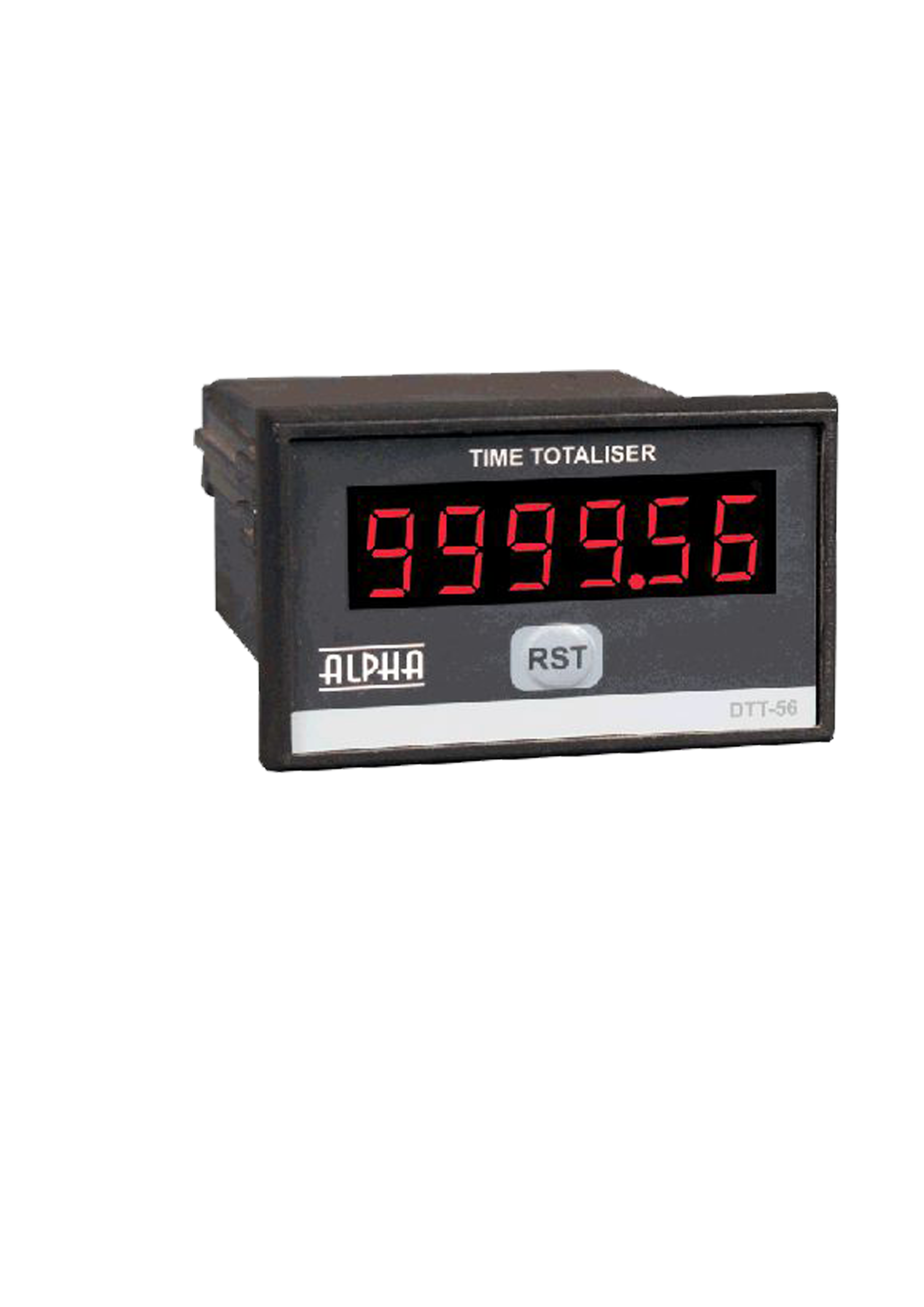

DTT 56: 6 Digit, 0.3” Red LED

Input Signal:

NPN/PNP Proximity/Micro Switch/230V AC Pulse

Range Options:

0.01 seconds/minute

0.1 seconds/minute

999.999 seconds

9999.99 minutes

9999.9 hours

999999 hours
(Selectable by DIP switch)

Reset: By front keypad

Memory Retention: Non-Volatile Memory

Power Supply: 230V AC, 50Hz (Linear Power Supply)
