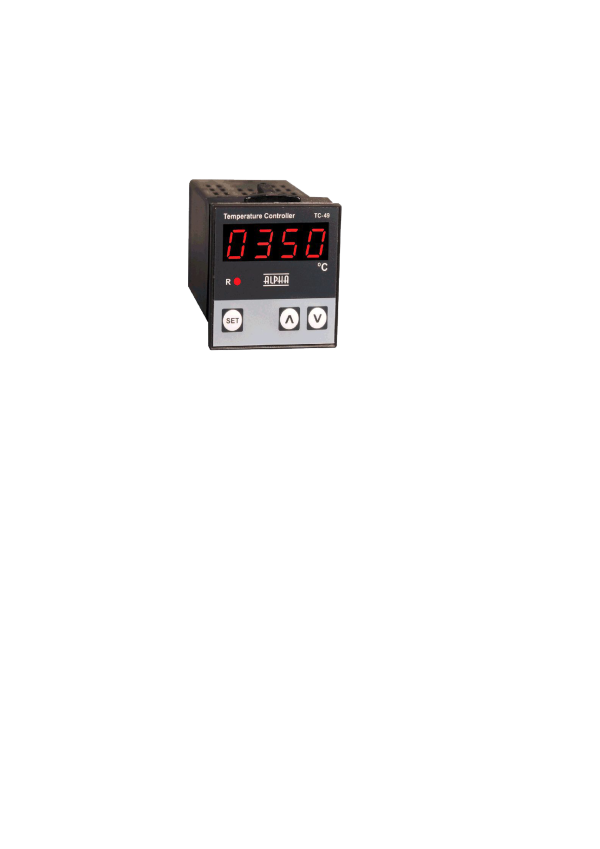

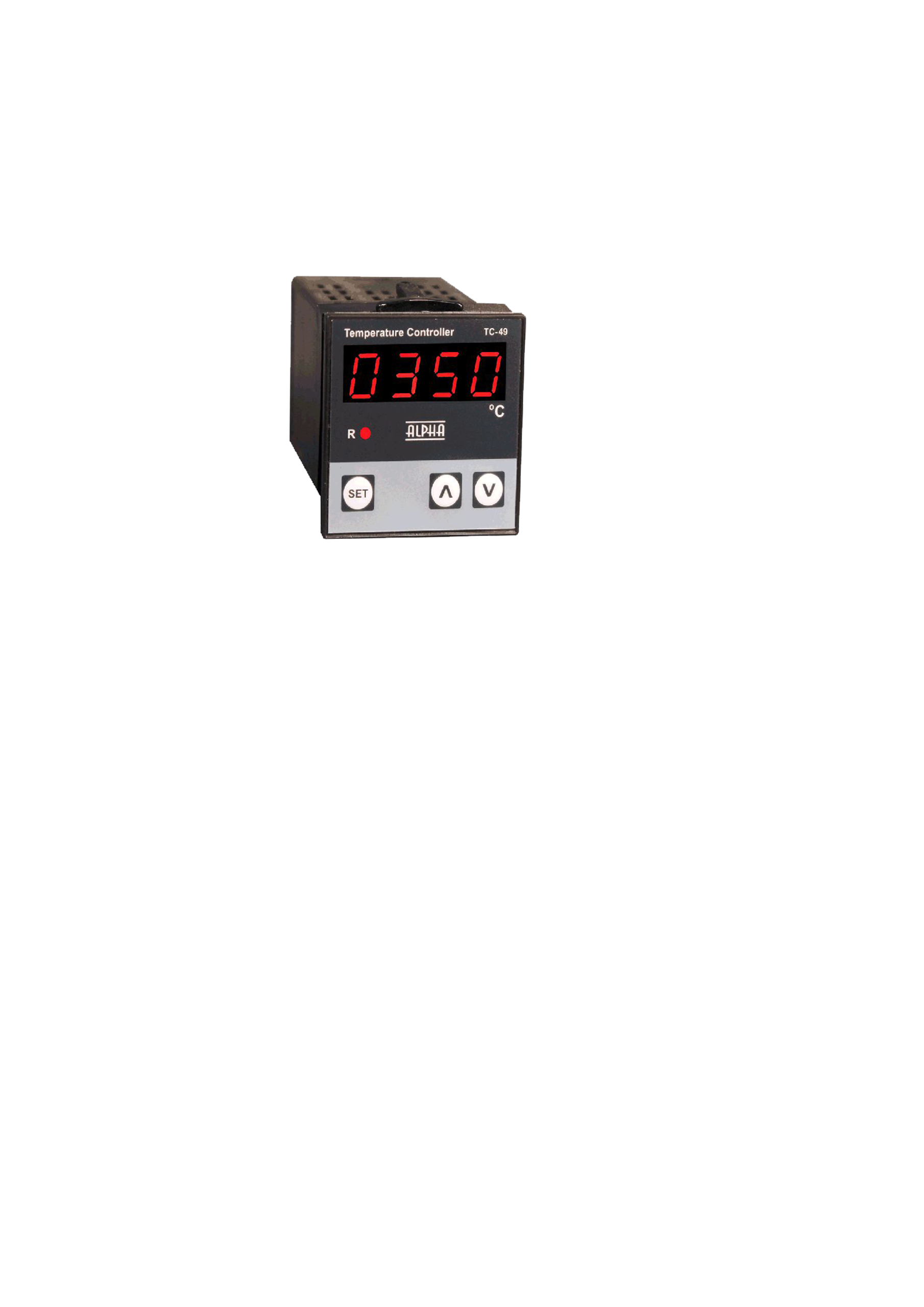

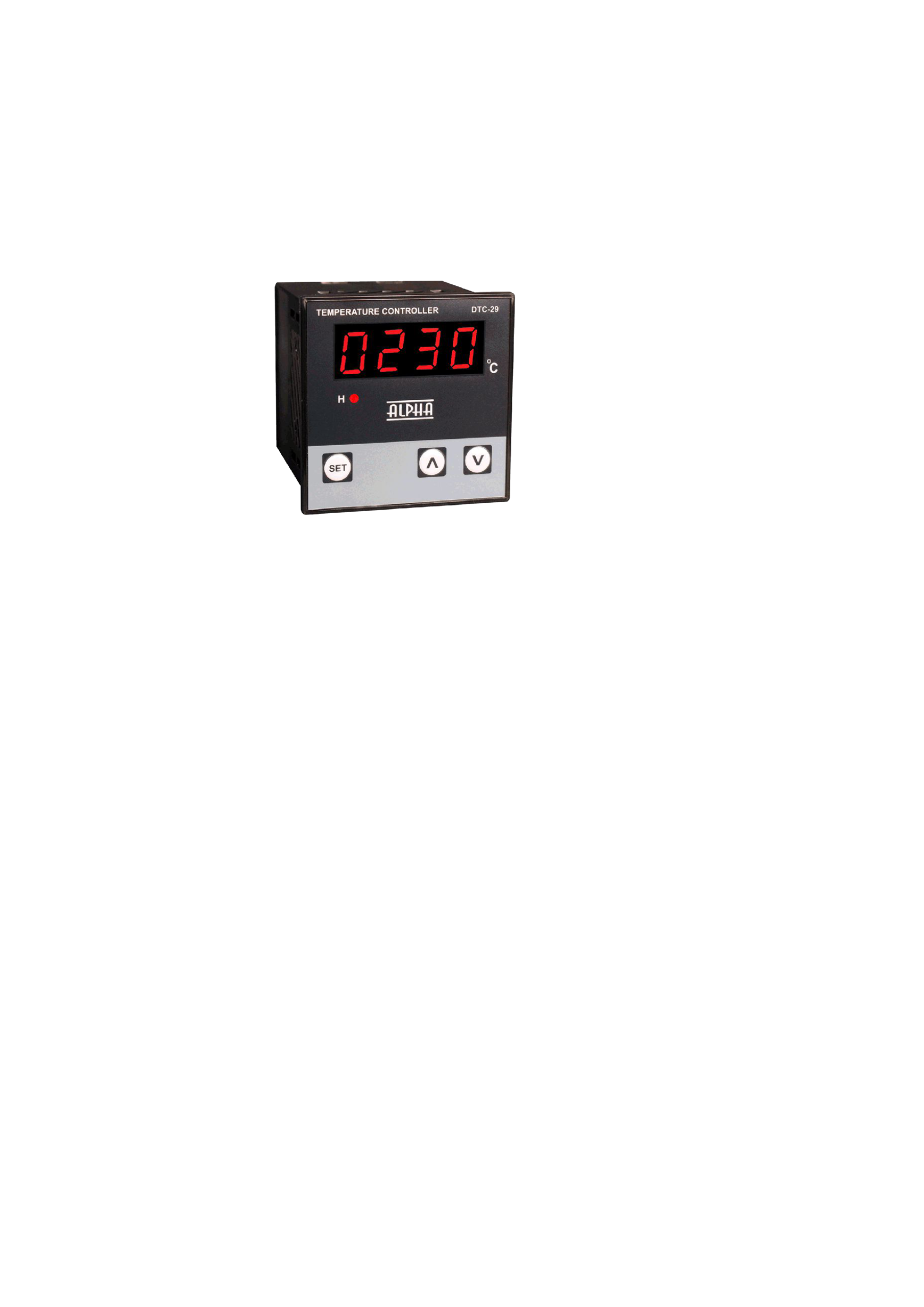

DIGITAL TEMPERATURE CONTROLLER

MODEL:  DTC-19, DTC-29, DTC-49, DTC-39

DIMENSION: 96×96, 72×72, 48×48, 48^96

PANEL CUTOUT (mm): 68 x 92, 68 x 68, 44 x 44, 44 x 92

DISPLAY: DTC-l9, DTC-29, DTC-39: 4-digit, 0.56-inch, red LED display  DTC-49: 4-Digit, 0.39” Red Led Display

INPUT SENSOR : J (0 °C-400 °C), K (0 °C-1200 °C), PT100 2W/3W (0 °C-400 °C) (–50.0 °C-°C)

OUTPUT: 1 C/O, 5 A, 230 V AC

SET POINT : 1 Set Point  (Push button to set SET point.)

CONTROL ACTION: Time Proportional/ON-OFF RESOLUTION: J&K 1 °C fix, PT-100 2W/3W 0.1°C/1°C ACCURACY: ±1 % of FSD

POWER SUPPLY: 230 V AC, 50 Hz

SKU:

DT01
Share:

Description

DIMENSION: 96×96, 72×72, 48×48, 48^96

PANEL CUTOUT (mm): 68 x 92, 68 x 68, 44 x 44, 44 x 92

DISPLAY: DTC-l9, DTC-29, DTC-39: 4-digit, 0.56” inch, red LED display  DTC-49: 4Digit, 0.39” Red Led Display

INPUT SENSOR : J (0 °C-400 °C), K (0 °C-1200 °C), PT100 2W/3W (0 °C-400 °C) (–50,0 °C-°C)

OUTPUT : 1 C/O, 5 A, 230 V AC

SET POINT : 1 Set Point  (Push button to set SET point)

CONTROL ACTION: Time Proportional/ON-OFF RESOLUTION: J&K 1 °C fix, PT-100 2W/3W 0,1 °C/1 °C  ACCURACY: ±1 % of FSD

POWER SUPPLY: 230 V AC, 50 Hz
